Have you ever wondered how a manual clutch works? In this blog post, we will delve into the main components of a manual clutch and provide a comprehensive understanding of their functions. Whether you’re a car enthusiast, a DIY mechanic, or simply curious about how your car operates, this article will break down the intricacies of a manual clutch.
From the flywheel to the pressure plate, release bearing to the clutch disc, we will explore each component step by step. Ever wondered how long it takes to fix gear linkage or how to identify if your gear linkage is broken? We’ve got you covered! Stay tuned as we address these common questions and dive into the world of manual clutches.
So, if you’re ready to learn about the inner workings of your car’s clutch and gain the knowledge to troubleshoot issues, let’s begin our journey into the main components of a manual clutch.
What Are the Main Components of a Manual Clutch
A manual clutch is like the unsung hero of a car’s transmission system. While it may not be as glamorous as the engine or as flashy as the wheels, it plays a crucial role in allowing us to shift gears and control the power flow between the engine and the wheels. So, let’s take a closer look at the main components of a manual clutch and unravel the magic behind this seemingly simple yet complex contraption.
The Clutch Disc

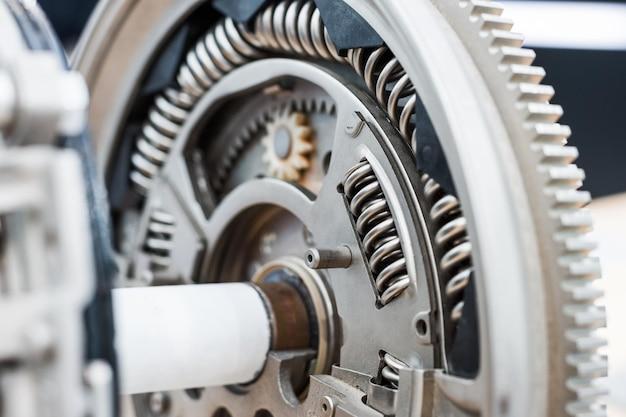

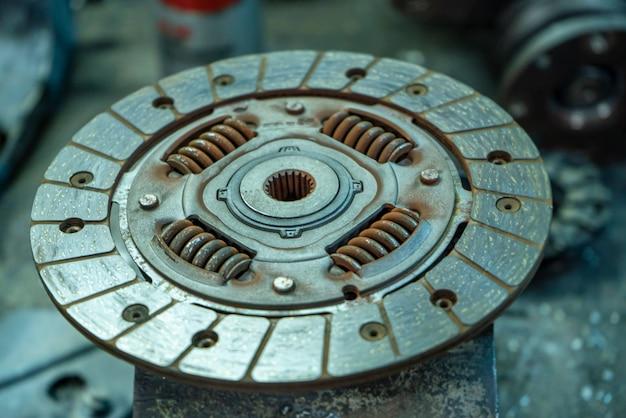

At the heart of a manual clutch lies the clutch disc. Think of it as the middle child who bears all the responsibility but hardly gets any credit. This disc, usually made of a high-friction material, connects the engine’s flywheel to the transmission’s input shaft. When you step on the clutch pedal, the clutch disc gets squeezed between the flywheel and the pressure plate, disengaging the engine and the transmission. Without this nifty little disc, shifting gears would be as smooth as walking on hot coals.
The Pressure Plate
The pressure plate is like the overprotective parent who keeps a watchful eye on the clutch disc. This metal plate exerts force on the clutch disc, holding it tightly against the flywheel when the clutch is engaged. It ensures that power from the engine flows seamlessly to the transmission, allowing you to change gears effortlessly. When you press the clutch pedal, the pressure plate releases its grip on the clutch disc, temporarily interrupting the power flow and giving you the freedom to shift gears without grinding those gears to smithereens.
The Flywheel
Ah, the mighty flywheel! This heavy, rotating disc is essentially the life force of the clutch system. Bolted directly to the engine’s crankshaft, the flywheel stores rotational energy and helps smooth out any fluctuations in engine speed. Not only does it aid in maintaining a constant rotation, but it also provides a surface for the clutch disc and pressure plate to make sweet, sweet contact. Without the flywheel, your car’s engine would be a hot mess, just like the leftovers forgotten in the back of your fridge.
The Throwout Bearing
Let’s not forget the throwout bearing, the unsung hero who takes center stage when you press that clutch pedal. This little bearing, located inside the clutch’s pressure plate assembly, has the important job of disengaging the clutch when you’re about to shift gears. When you press the clutch pedal, it pushes against the release fork, which in turn applies force to the throwout bearing. As the throwout bearing spins, it helps separate the clutch disc from the flywheel, allowing you to dance through the gears like a synchronized ballroom champion.
The Clutch Fork and Release Mechanism
Last but not least, we have the clutch fork and release mechanism, the dynamic duo that translates your foot’s wishes into clutch action. The clutch fork is a lever that sits between the throwout bearing and the clutch pressure plate, while the release mechanism consists of a system of cables, hydraulics, or linkages that connects the clutch pedal to the clutch fork. When you press the clutch pedal, the release mechanism moves the clutch fork, applying pressure on the throwout bearing and ultimately disengaging the clutch. It’s like a perfectly choreographed dance, where your foot takes the lead, and the clutch fork gracefully follows its every move.
So there you have it, the main components of a manual clutch laid bare for your automotive enlightenment. Next time you’re shifting gears, take a moment to appreciate the orchestration of these seemingly ordinary parts that seamlessly transform your car’s power into forward motion. Remember, the clutch may be hidden beneath the surface, but its significance is far from obscure.
FAQ: Manual Clutch Components and Gear Linkage Repair
What Are the Key Components of a Manual Clutch
A manual clutch is a crucial component of a car’s transmission system. It allows the driver to smoothly engage and disengage power from the engine to the transmission, enabling gear changes. The main components of a manual clutch include:
1. Clutch Disc
The clutch disc, also known as the friction disc, is sandwiched between the engine flywheel and the pressure plate. It has a high-friction surface that engages and disengages with the flywheel and pressure plate, facilitating power transfer.
2. Pressure Plate
The pressure plate is bolted to the flywheel and exerts clamping force on the clutch disc. When the driver presses the clutch pedal, the pressure plate releases the clutch disc, allowing gear changes.
3. Flywheel
The flywheel is attached to the rear of the engine crankshaft. Its main function is to store rotational energy and provide a smooth surface for the clutch disc and pressure plate to engage with.
4. Release Bearing
The release bearing, also called the throw-out bearing, is responsible for applying force to the pressure plate fingers. This action disengages the clutch disc when the clutch pedal is pressed.
How Long Does it Take to Fix Gear Linkage
The time required to fix gear linkage can vary depending on the extent of the damage and the expertise of the mechanic. On average, it may take around 2 to 4 hours to fix gear linkage issues. However, complex problems might take longer, requiring around 4 to 6 hours or even a full day. It’s best to consult your mechanic to get an accurate estimate based on your specific situation.
Are Brake Cables and Gear Cables the Same
No, brake cables and gear cables are not the same. Although they may appear similar, they serve different functions in a vehicle. Brake cables are responsible for transmitting the force applied by the driver’s foot on the brake pedal to the brake calipers, resulting in the application of brakes. Gear cables, on the other hand, enable the driver to change gears by transmitting the movement of the gear lever to the transmission.
How Do You Know if Your Gear Linkage is Broken
When your gear linkage is broken or malfunctioning, several signs might indicate the issue:
1. Difficulty Shifting Gears
If you experience difficulty or resistance while shifting gears, such as being unable to engage a specific gear or feeling grinding or crunching sensations, it could be a sign that your gear linkage is broken.
2. Gears Slipping or Popping Out
Another indicator of a broken gear linkage is when your gears slip out of place spontaneously, or they refuse to stay engaged, popping back into neutral. This can be a potential hazard while driving and should be addressed promptly.
3. Loose Gear Lever
A gear lever that feels loose or moves excessively could mean that the gear linkage is worn, damaged, or disconnected. If you notice increased play in the gear lever, it’s essential to have it inspected.
How Much Does it Cost to Fix a Broken Shifter
The cost to fix a broken shifter can vary depending on multiple factors, including the type of vehicle, the extent of the damage, and the labor charges of the mechanic. On average, the cost for shifter repair or replacement ranges from $150 to $500, including parts and labor. However, complex repairs involving additional components or specialized equipment can increase the cost.
Can I Use Brake Housing for Shifter Cables
While it may seem tempting to repurpose brake housing for shifter cables, it is not recommended. Brake housing and shifter housing are designed differently due to the varying requirements of their respective functions. Shifter cables operate with smaller tolerances and require smoother, low-friction housing to facilitate precise gear changes. Therefore, it’s best to use designated shifter housing to ensure optimal performance and prevent potential damage to the shifting mechanism.
Remember, taking care of your manual clutch and gear linkage is crucial for a smooth and enjoyable driving experience. If you encounter any issues or suspect a problem, don’t hesitate to consult a professional mechanic to diagnose and resolve the problem efficiently. Safe travels with smooth gear changes!
